• SCOPE OF WORK

    Project management, engineering, procurement, construction, and startup

  • VALUE

    $1.7 billion

  • SCHEDULE

  • BUSINESS

    Power

State-of-the-art air-quality control systems

Some industry veterans thought it would be impossible to retrofit FirstEnergy’s W.H. Sammis power plant with state-of-the-art air-quality control systems. The scope and complexity were enormous—compounded by a very confined work area and the need to maintain normal power generation during construction.

Working with two other companies and acting as the owner’s agent, Bechtel successfully installed such a system for the 2,220-megawatt coal-fired power complex, which dramatically reduced gas emissions and met stringent federal standards.

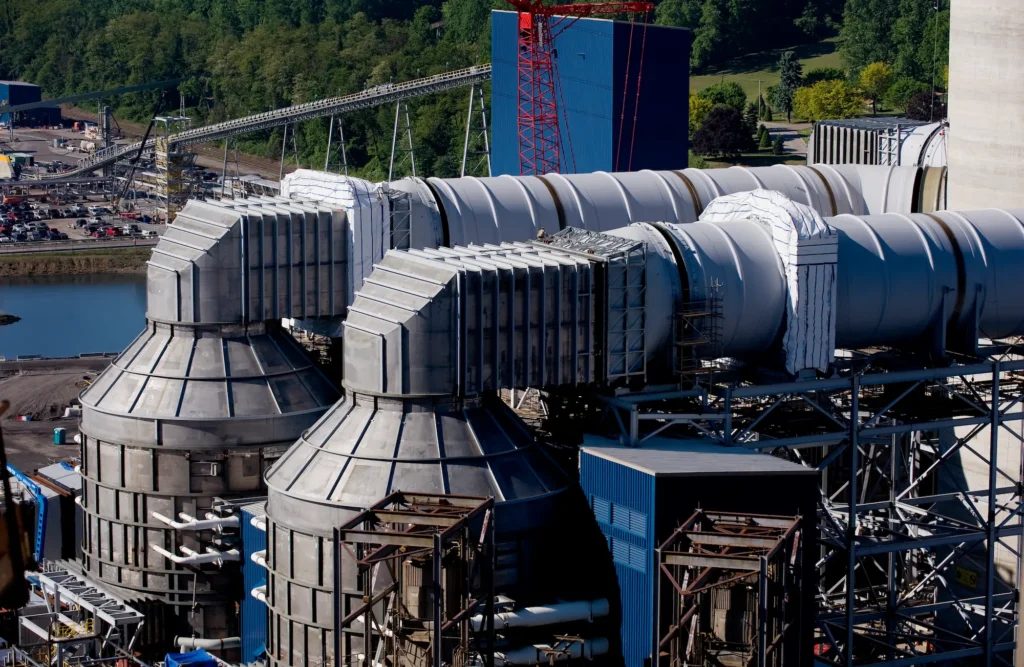

  • Bechtel installed three wet flue gas desulfurization units, which dramatically reduced emissions and met stringent federal standards
  • Bechtel was able to complete the project despite the confined work area

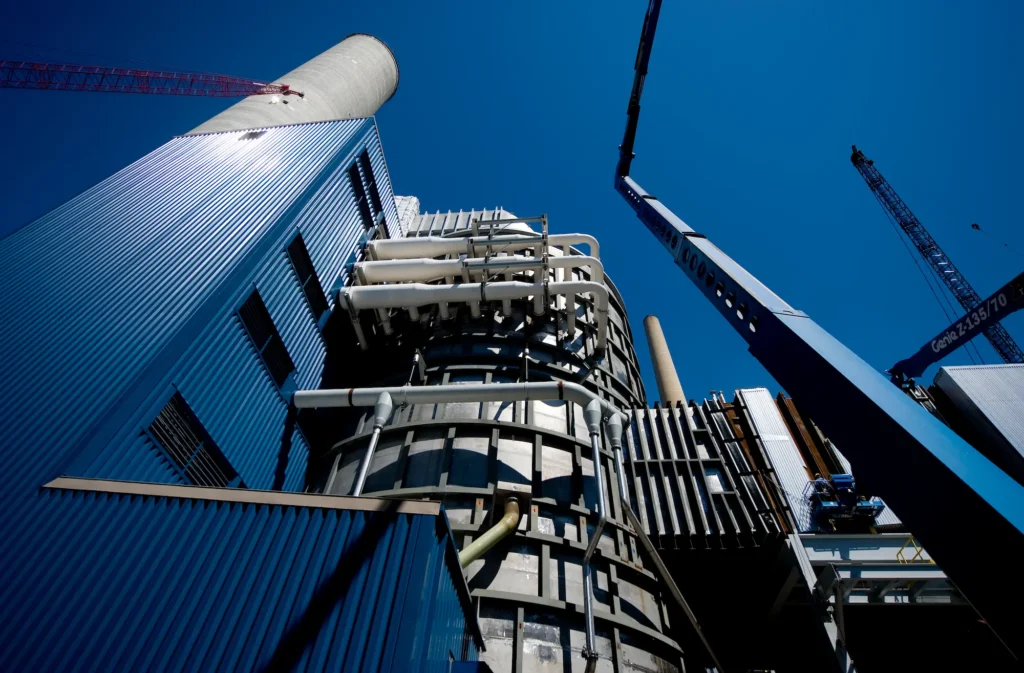

  • A view of the completed absorbers at Sammis

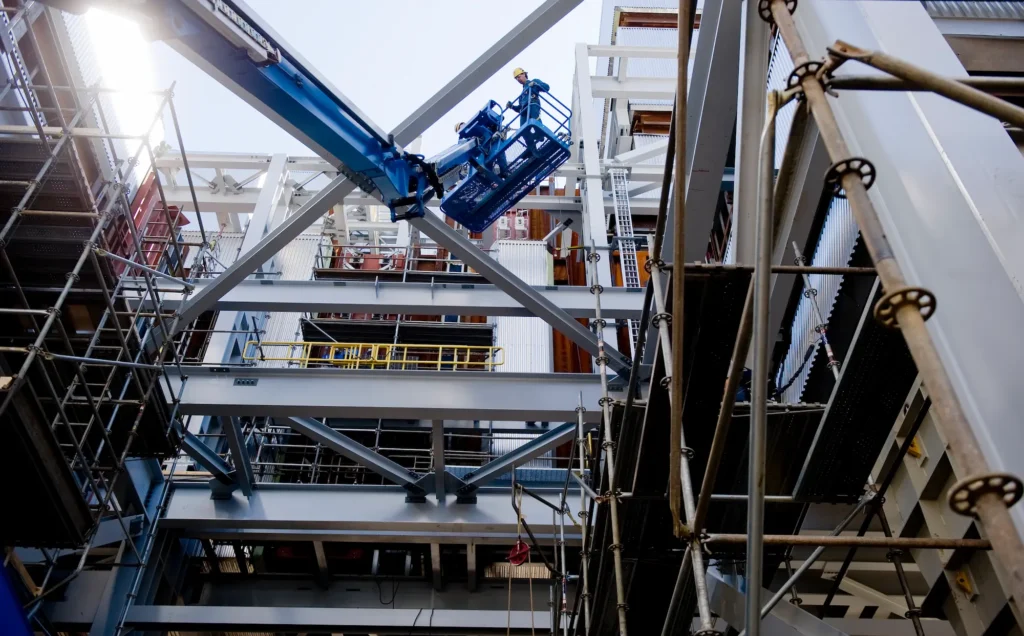

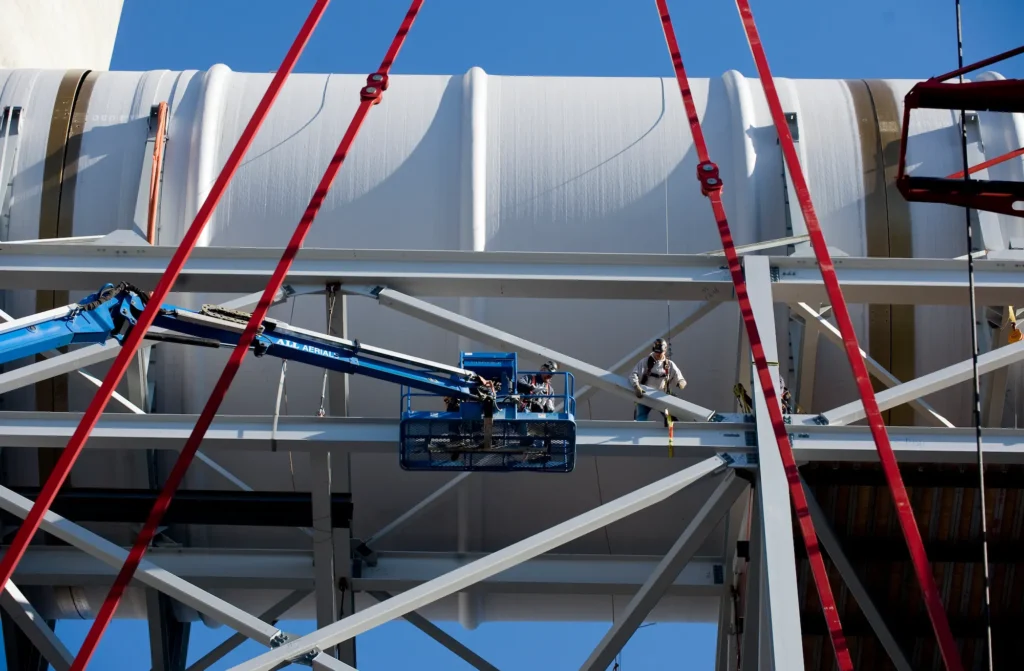

  • Two of the project’s boilermakers in a lift
  • Bechtel managed to do what some industry veterans thought would be impossible: retrofit the Sammis plant with state-of-the-art air-quality-control systems

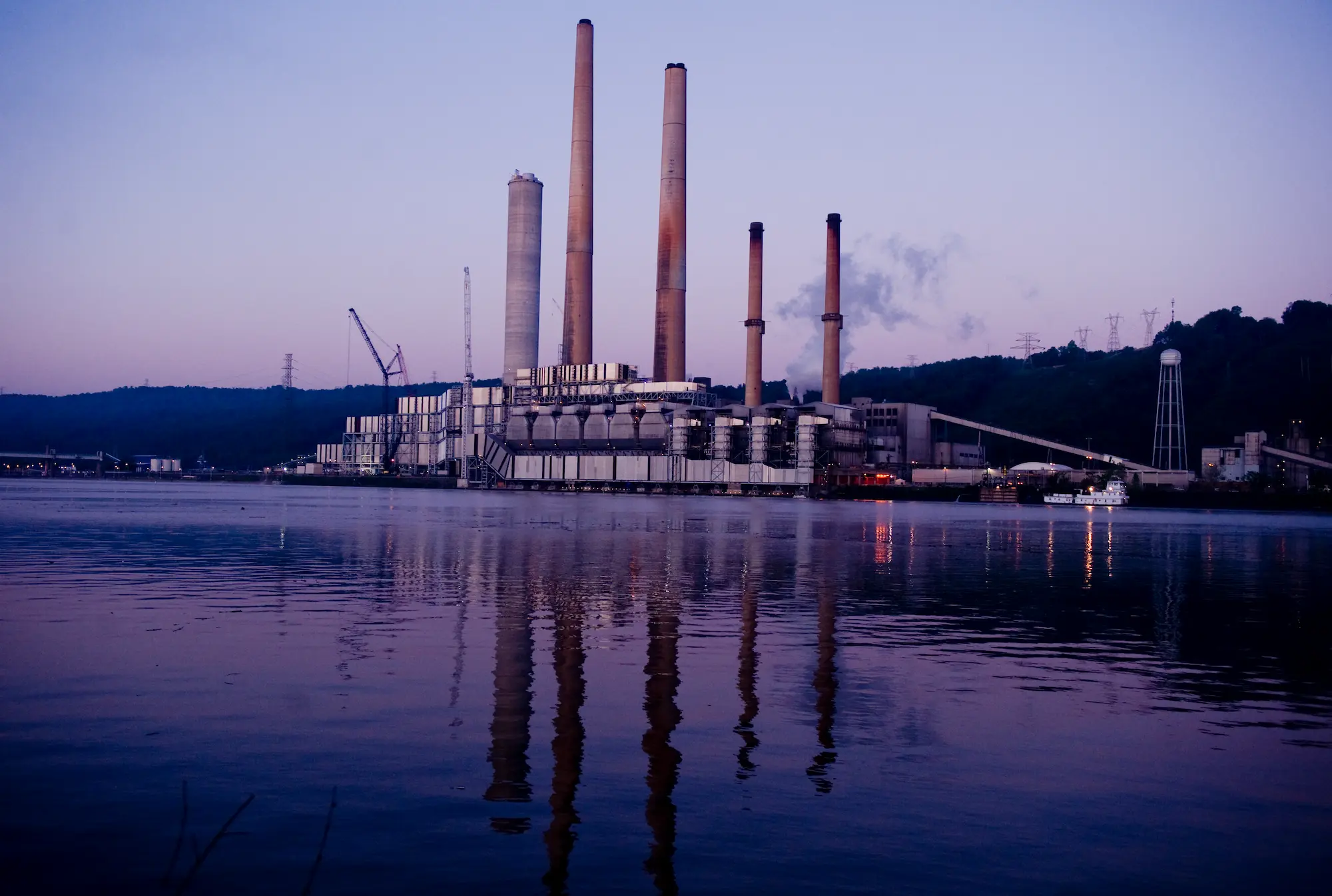

  • The Sammis Power Plant as seen from the Ohio River
  • Thanks to Bechtel’s work, some 95 percent of sulfur dioxide was removed from the plant’s emissions

Widget Image

The Sammis retrofit earned Construction Project of the Year honors at the 2010 Platts Global Energy Awards. Also in 2010, the Sammis effort won a Power Engineering magazine Projects of the Year award in the best coal-fired project category.

Inside the project

We installed three wet flue gas desulfurization units, which remove some 95 percent of sulfur dioxide from plant emissions. These units exhausted to a single 850-foot (nearly 260-meter) chimney with three flues, new booster fans, limestone and gypsum handling makeup and wastewater treatment, flue-gas ductwork, electrical supply and distribution, control-system components, and other support facilities.

The success of this project protected our customer’s huge capital investment as well as the air surrounding it.
